Solar Powered Hubs

Adex Solar Innovative Products and Services - HUB CENTRES

Great opportunity for Solar Powered, portable classroom, office, library, or business centre, technology placed in an existing classroom, offices, Medical Hub, Civic hosting, Education Hub, Library and Internet Hub, Telecommunications Hub, Retail and workplace schools and colleges structure or in a normal twenty and forty feet container.

It is multi-functional in many ways:

  • It is solar powered guaranteed for 25 years.
  • It has state-of-the-art modern electronic equipment.
  • A mast dish with a range of 2.5 miles radius, which can be used to support mobile phones, Wi-Fi, Internet connectivity, surfing the net, remote virtual communication, data communication, and emailing.

A special project that can generate employment, business, and also help local community development and economic regeneration.

OFF-GRID CONTAINERISED CLASSROOM

Mobile Phone Mast & Dish / Mini-Office, Medical Hub, Civic hosting, Education Hub, Library and Internet Hub, Telecommunications Hub, Retail and workplace schools and colleges structure for rural and urban city energy solutions.

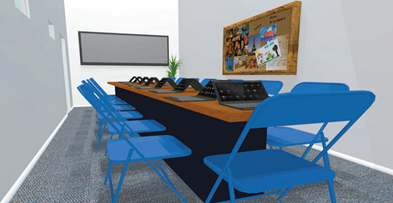

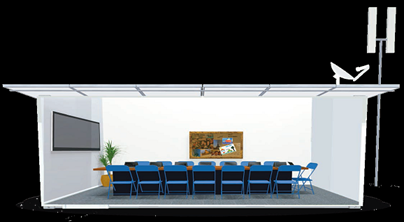

Our containerised classroom, Mobile Phone Mast & Dish / mini-office addresses many of these challenges. This fully self-contained classroom, Mobile Phone Mast & Dish/mini-office mobile/moveable office is designed to run entirely off-grid, in both daylight and dark hours. The classroom is air-conditioned and coated with a thermal and radiation barrier to help prevent transfer of heat, water, and dust into the container. It is enabled for internet connectivity using smart small cell technology from one of our partners and equipped with a 55-inch interactive touch screen at the front of the classroom, internal lighting, and wheelchair access. The internal configuration is flexible.

If you have chosen a 1:1 computing model, then the classroom can be configured with individual power and charging points for laptops and tablet PCs.

If you have chosen to deploy an ICT suite, then the classroom can be configured with our DC-powered server and All-in-One desktop clients. Alternatively, you can choose a combination of these. We have a range of servers and All-in-One desktop client devices that work with all major operating systems, including Windows MultiPoint Server 2012 (WMS). Our All-in-One desktop client can work in dual mode as a WMS client and as an independent PC, enabling classrooms to act as a social hub after school while protecting access to the education content on the server if necessary.

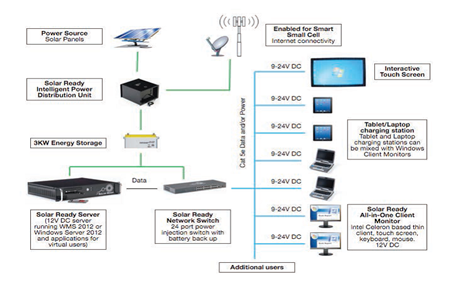

At the centre of the off-grid solution is our Intelligent Power Distribution Unit (IPDU). The solar panels are connected directly to the IPDU, which provides power directly for air conditioning, lighting, and smart small cell (internet connectivity) and to charge the storage batteries. Energy stored in the batteries is used to power the IT equipment in the classroom via a DC power injector and to provide power for all other equipment during dark hours.

The innovative technology within the IPDU not only optimises the charge to the storage batteries, extending their useful life, but also controls the simultaneous charging and discharging of the storage batteries during daylight hours to ensure adequate power during dark hours.

The modular desk houses the main technology units including the battery bank and air conditioning. This configuration not only makes the technology secure, but helps with keeping it cool to prolong its life.

The ICT requirements of schools and colleges vary widely, and schools face many challenges in deciding on the best solution; from whether they deploy a 1:1 computing model or use ICT labs, to the operating systems and applications they use, to the school’s location.

REMOTE, RENEWABLE, RELIABLE

The Solar Ready Off-Grid Containerised Classroom is the ideal solution when no permanent classroom structure exists or when schools need to increase their estate quickly:

  • Fast deployment
  • Fully self-contained
  • Solar powered - sufficient power to work in daylight and dark hours
  • Designed to work completely off-grid with Solar Ready’s DC power technology
  • Flexible internal configuration - can be equipped with Solar Ready’s DC powered servers and All-in-One client desktops, or charging points for laptops and tablets, or a combination of these
  • 20-foot container for 15 pupils and 1 teacher; 40-foot container for 30 pupils and 1 teacher
  • Secure environment for the classroom equipment
  • Air-conditioned
  • 55-inch interactive touch screen at the front of the classroom
  • Internal lighting
  • Wheelchair access
  • Enabled for internet connectivity via smart small cell (additionally capable of providing 2G or 3G connectivity for the community)

Deployment and equipment can be installed into existing classrooms, offices, Medical Hub, Civic hosting, Education Hub, Library and Internet Hub, Telecommunications Hub, Retail and workplace schools and colleges structure:

  • Deployed as a 15-student unit; multiple 15-student units can be combined for larger classrooms
  • 12 solar panels mounted on the roof of the container
  • Enabled for internet connectivity via VSAT

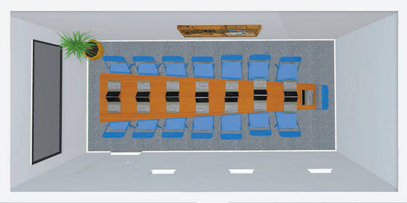

  • Central desk for 15 students and 1 teacher, featuring:
    • 15 x air conditioning vents to cool student devices and students
    • 15 x location pads on which to rest student devices
    • DC power distribution units
    • WiFi router to provide internal connectivity for the student devices
    • Cabling and connectors to provide power and charging for 15 student devices
    • 4 x 250Ahr batteries for energy storage
    • Air conditioning unit

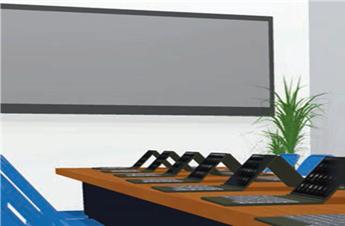

    • 55-inch, 10-touch point interactive screen with built-in PC module, complete with interactive teaching software to aid collaborative learning, mounted on the wall at the front of the classroom
    • Energy-efficient lighting

Deployment and equipment can also be installed into a 20-foot container designed for 15 students/staff as a Containerised Solar Classroom, offices, Medical Hub, Civic hosting, Education Hub, Library and Internet Hub, Telecommunications Hub, Retail and workplace schools and colleges:

  • 20-foot metal container, finished internally and externally with a thermal and radiation barrier paint
  • 12 solar panels mounted on the roof of the container
  • Enabled for internet connectivity via VSAT
  • Central desk for 15 students and 1 teacher, featuring:
    • 15 x air conditioning vents to cool student devices and students
    • 15 x location pads on which to rest student devices
    • Integrated teacher’s PC console that also provides environmental monitoring
    • DC power distribution units
    • WiFi router to provide internal connectivity for the student devices
    • Cabling and connectors to provide power and charging for 15 student devices
    • 4 x 250Ahr batteries for energy storage
    • Air conditioning unit
    • 55-inch, 10-touch point interactive screen with built-in PC module, complete with interactive teaching software to aid collaborative learning, mounted on the wall at the front of the classroom
    • Energy-efficient lighting
