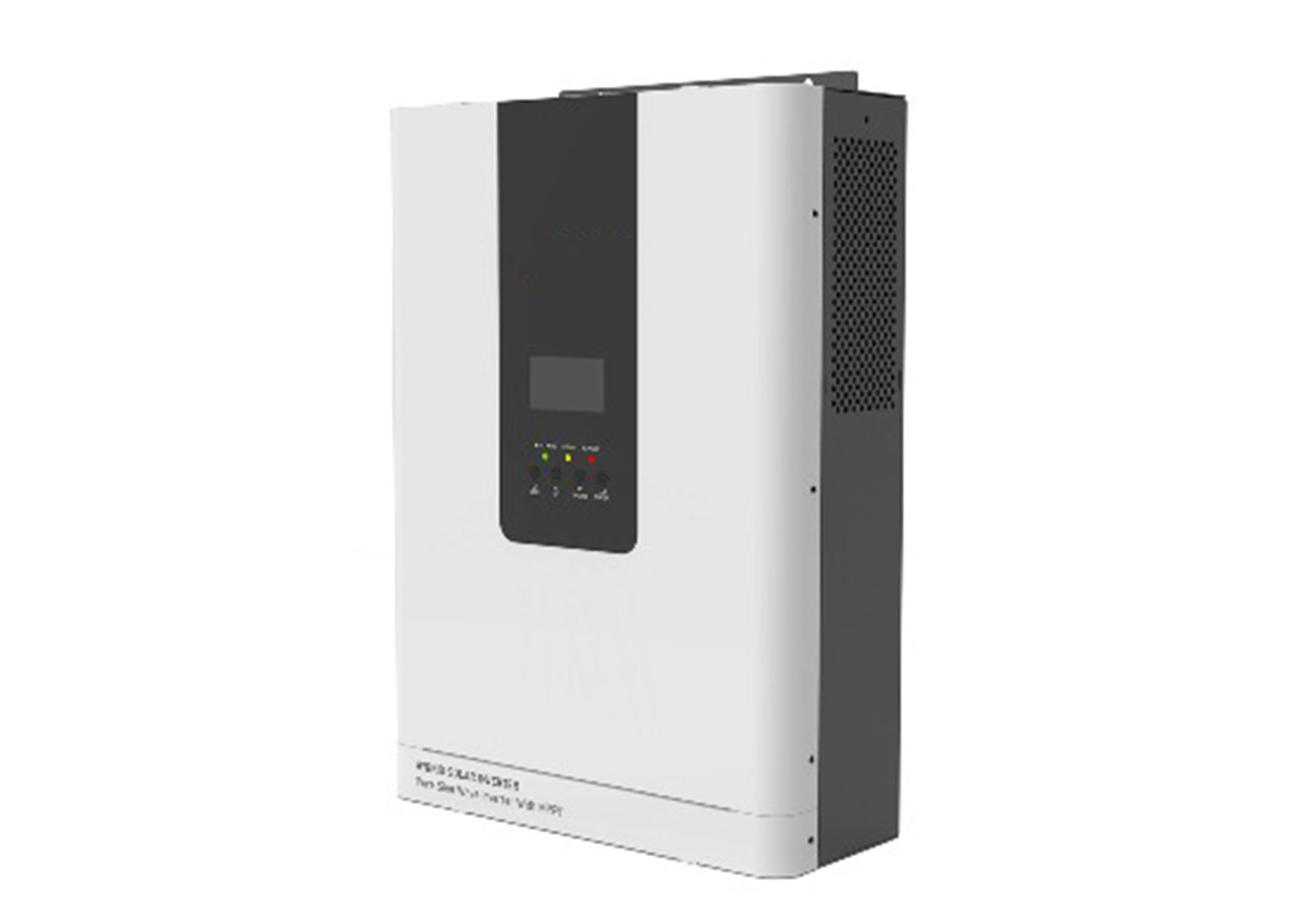

Low Frequency Off-grid Inverter
SIF-1~12.5KW
SIF-1~12.5KW
The SIF series is mainly composed of stable and durable components and hardware.
It is especially suitable for complex power environments with high current impact,
and single-phase power environments equipped with water pumps, crushers, presses,
stamping machines, pumping machines, compressors, hydraulic presses, electric clothes
trucks, etc.
It is especially suitable for complex power environments with high current impact,
and single-phase power environments equipped with water pumps, crushers, presses,
stamping machines, pumping machines, compressors, hydraulic presses, electric clothes
trucks, etc.
- Built-in Transformer, Stable Output Voltage and Power Saving
- Multiple Working Modes: Photovoltaic / Battery / AC Priority
- Pure Sine Wave Output with Strong Load Capacity
- MPPT Efficiency > 98%, AC Charging Efficiency > 98%
- UPS Transfer Time < 10ms
- Load Peak Ratio = 3:1, Strong Loading Capacity
- Low No-load Loss
Model:
SIF-1KW / SIF-1.5KW / SIF-2KW / SIF-3KW / SIF-4KW / SIF-5KW / SIF-6KW / SIF-10KW / SIF-12.5KW
Input Data
- Rated Power: 1000VA to 12500W (varies by model)
- Rated Input Voltage: 220VAC (Standard) / 110VAC (Customized)
- Input Voltage Range:
- 220VAC: 154V~264VAC ±3V (Normal), 185V~264VAC ±3V (UPS)
- 110VAC: 77V~132VAC ±3V (Normal), 92V~132VAC ±3V (UPS)
- Input Frequency: 50Hz / 60Hz ±5%
- Max. PV Array Power:
- 12V: 800W
- 24V: 1600W / 3200W
- 48V: 6400W
- PV Input Voltage Range:
- 12V (PWM): 15V–50VDC
- 24V (PWM): 30V–105VDC
- 24V (MPPT): 30V–150VDC
- 48V (MPPT): 60V–150VDC
- Optimum Vmp: 50VDC (12V), 105VDC (24V PWM), 150VDC (24V/48V MPPT)
- Max. Solar Charging Current: 60A / 120A
- Max. AC Charging Current: up to 60A (varies by model)
- Transfer Time: ≤10ms (UPS), ≤20ms (INV)
Output Data
- Output Power: 800W – 10000W
- Power Factor: ≈ 0.8
- Rated Output Voltage: 220VAC ±10% (110VAC ±10%)
- Output Frequency: 50Hz / 60Hz ±1%
- Efficiency:
- MPPT: >98%
- AC Charging: >98%
- Battery Mode: 88% – 89%
Battery Data
- Battery Type: Lead-acid / Water / LiFePOâ‚„
- Battery Voltage: 12VDC / 24VDC / 48VDC (varies by model)
- Charging Voltage: 13.7VDC / 27.4VDC / 54.8VDC
General Data
- Peak Load Ratio: 3:1 (Max)
- Standby Power Consumption:
- 12V: 8W
- 24V: 16W
- 48V: 32W
- Protection:
- AC: Input Overcurrent (No-fuse Breaker)
- INV: Overload, Short-circuit, Low-voltage, Reverse Battery Protection (Fuse)
- LED Display & Voice Alarm:
- Status indicators: Mains supply, Charging, Inverter, Fault
- Audio: Fault code buzzer alerts
Environmental Conditions
- Operating Temperature: 0℃ ~ 40℃
- Storage Temperature: -15℃ ~ 45℃
- Humidity: 10% ~ 90% (Non-condensing)
- Noise: ≤45dB
Dimensions (W × D × H)
- 125 × 312 × 490mm
- Packaged: 345 × 254 × 105mm / 545 × 400 × 200mm
- Other Models: 400 × 200 × 545mm
Standard
EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
