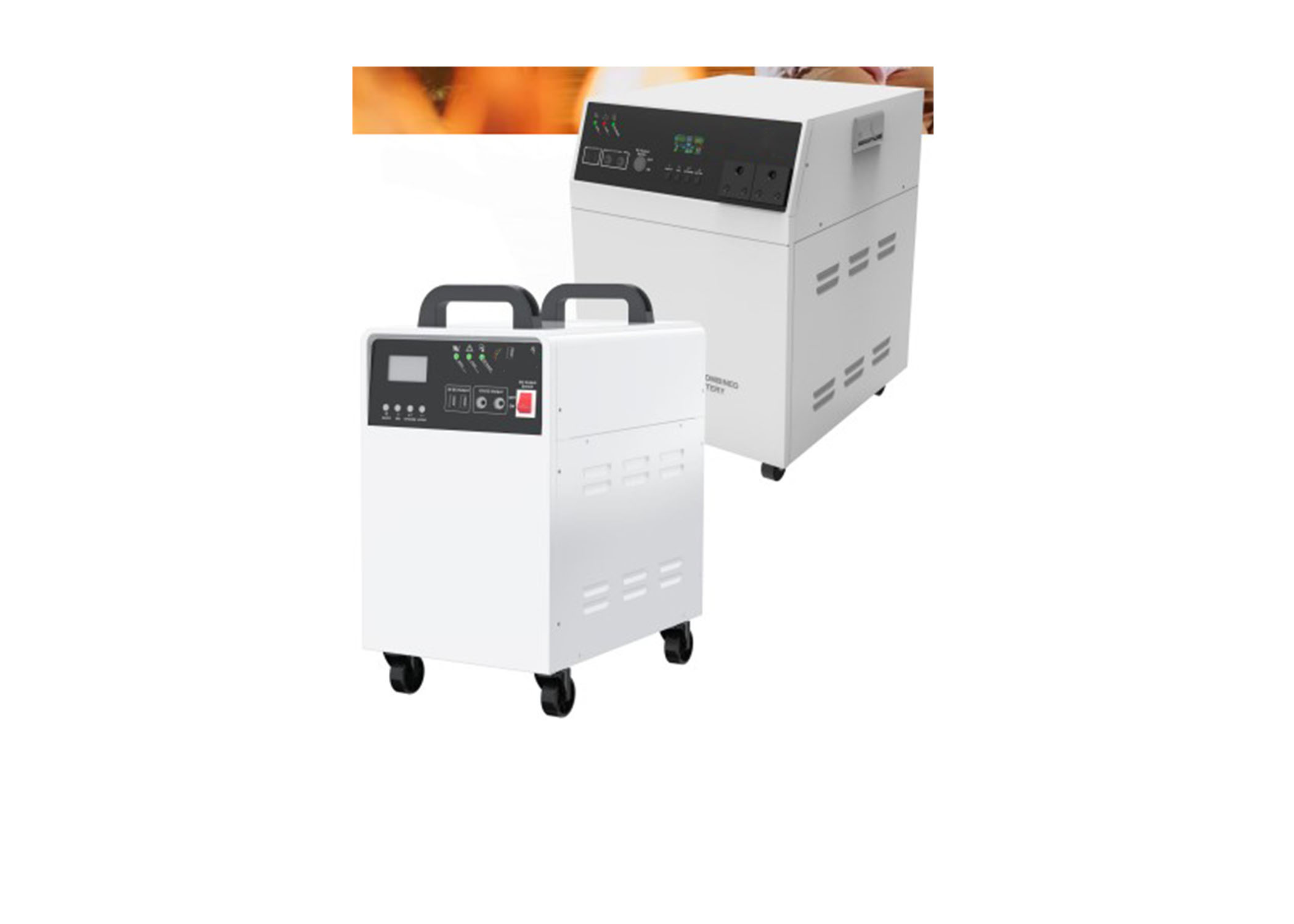

Mini All-in-one Energy Storage System
SMA Series: MSF-1KW12.8V100AHP / MSF-1KW12.8V314AHP / MSF-2KW25.6V100AHP / MSF-2KW25.6V314AH

The MSF series integrates PV MPPT, inverter, controller, and battery into one set. It is an independent small solar BESS station, specifically designed to bring comfort, great convenience, and high efficiency to households.

• Integrated: Integrated PV modules, inverters, LFP batteries, BMS. DC/AC coupling compatibility with various PV components and grid conditions for flexible PV capacity.
• Hybrid: PV, grid, and battery modes are available.
• High-Efficiency: High PV/charge-discharge efficiency, intelligent energy dispatching, pure sine wave inverter output.
• High Safety & Reliability
• Long cycle life, easy maintenance.
• Multi-protection: Overcharge/discharge, short circuits, etc.
• Low-Carbon & Silent Adaptation: < 40dB noise, compact and aesthetic residential design style.

Model:
MSF-1KW 12.8V100AHP / MSF-1KW 12.8V314AHP / MSF-2KW 25.6V100AHP / MSF-2KW 25.6V314AH

Solar Input Data
Efficiency: > 85% (PWM) / > 97% (MPPT)
Charging Method: PWM / MPPT
Max. PV Voltage: 50V (PWM) / 145V (MPPT)
Max. PV Power: 500W / 800W / 1600W
Rated AC Charging Current: 5–10A / 30A / 60A
Float Charging Voltage: 13.7V / 27.4V

AC Input Data
Rated Voltage: 220VAC (Standard) / 110VAC (Customized)
Charging Current:
– 12A (10–20A Adjustable)
– 15A (12–15A Adjustable)
– 20A (15–30A Adjustable)

Inverter Output Data
Rated Power: 1000W / 2000W
Output Power: 800VA / 1600VA
Output Voltage: 220VAC (Standard) / 110VAC (Customized)
Output Frequency: 50Hz / 60Hz
Output Waveform: Pure Sine Wave

DC Output Data
High Voltage Protection: 16VDC / 32VDC
High Voltage Recovery: 15.2VDC / 30.4VDC
Low Voltage Recovery: 13VDC / 26VDC
Low Voltage Protection: 11VDC / 22VDC
USB Output Ports: 2 × 5VDC (Max 2A)
DC Output Ports: 2 × 12VDC (Max 5A)

Battery
Battery Type: LiFePO4 / Gel / Lead-acid
Battery Voltage: 12.8V / 25.6V
Battery Specification: 100AH / 314AH
Rated Charge Battery Voltage: 13.7V / 27.4V
Overcharge Protection Voltage: 14.2VDC / 28.4VDC

General Data
Warranty: Inverter – 2 Years; LiFePO4 Battery – 2 Years / 5 Years (Customized)
Operating Temperature: 0℃ ~ 40℃
Storage Temperature: -25℃ ~ 55℃ (LiFePO4: -10℃ ~ 50℃)
Operating Humidity: 10% ~ 90% RH (Non-condensing)
Dimensions (W×D×H):
– 260 × 410 × 440mm
– 320 × 515 × 545mm (Packaged)
– 380 × 434 × 539mm
– 480 × 535 × 640mm (Packaged)

Safety Standards
EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1, CE, UN38.3, MSDS
