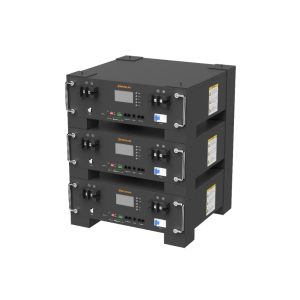

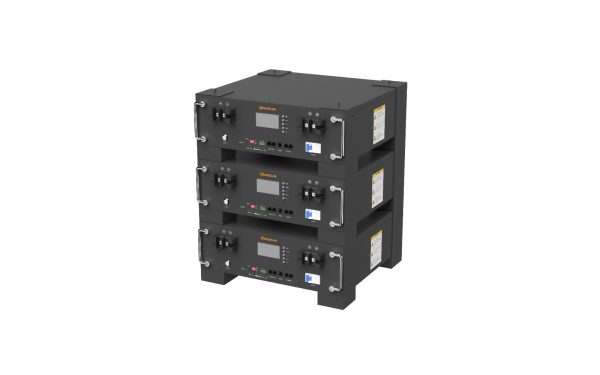

SMA Series: R-51.2V100AH-B / R-51.2V200AH-B / R-51.2V300AH-B / R-51.2V400AH-B / R-51.2V500AH-B
- ● A-grade LiFePO4 cells from top 5 brands
- ● Compatible with mainstream inverters
- ● Intelligent BMS, automatic restoration, and maintenance-free

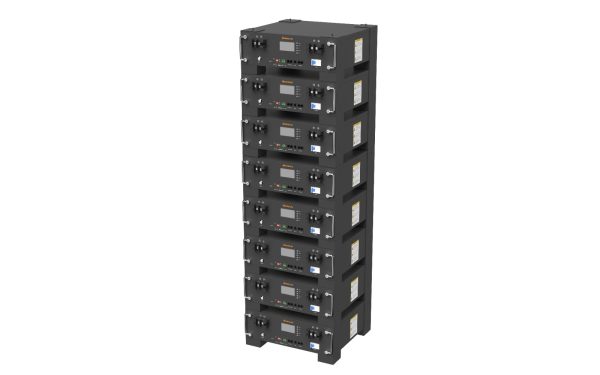

- ● Modular drawer design – supports up to 9 modules
- ● Advanced thermal management technology to control the temperature rise in the battery system
- ● 5-year warranty, 10-year lifespan
- ● Lifetime technical support
R-51.2V100AH-B / R-51.2V200AH-B / R-51.2V300AH-B / R-51.2V400AH-B / R-51.2V500AH-B
Cell Type: LiFePO₄
Rated Capacity: 100Ah / 200Ah / 300Ah / 400Ah / 500Ah
Energy: 5.12kWh / 10.24kWh / 15.36kWh / 20.48kWh / 25.6kWh
End-of-Charge Voltage: 58.0V
End-of-Discharge Voltage: 42.0V
Rated Charge Current: 42A
Max Continuous Discharge Current: 50A / 100A / 150A / 200A / 250A
Max Instantaneous Discharge Current: 100A / 200A / 300A / 400A / 500A
Overcurrent Protection: 120A / 240A / 360A / 480A / 600A
Ingress Protection: IP50
Warranty: SMA Series: 5 Years / ECO Series: 5 Years
Cycle Life:
– SMA Series: ≥6000 cycles @ 80% DOD & 0.5C, 25℃
– ECO Series: ≥3000 cycles @ 80% DOD & 0.5C, 25℃
Smart Features:
– SOC Estimation: Yes
– Intelligent Balancing: Yes
– Sleep and Wake-up Functions: Yes
– Smart Cloud Platform: Yes
Protection Functions:
Over-charge, Over-discharge, Over-current, Short-circuit, Over-voltage, Under-voltage, Over-temperature (high/low)
Communication Protocols: RS485 / CAN / RS232 / BT (Optional)
Compatibility: Compatible with 12 popular inverter brands
Operating Temperature:
– Charging: 0℃ ~ 55℃
– Discharging: -20℃ ~ 55℃
Storage Temperature: -30℃ ~ 60℃
Storage Humidity: ≤90% RH
Standard Environmental Conditions:
– Temperature: 25℃ ±2℃
– Humidity: 45% ~ 75% RH
– Atmospheric Pressure: 86kPa ~ 106kPa
Dimensions (W×D×H):
– 100Ah: 422×450×188 mm
– 200Ah: 422×450×376 mm
– 300Ah: 422×450×564 mm
– 400Ah: 422×450×752 mm
– 500Ah: 422×450×940 mm
Net Weight:
– 100Ah: ~43.5kg
– 200Ah: ~87kg
– 300Ah: ~130.5kg
– 400Ah: ~174kg
– 500Ah: ~217.5kg
Certification:
CE: IEC 61000-6-3:2021, IEC 61000-6-1:2019, IEC 61000-3-2:2009+A1:2021,
EN61000-3-3:2013+A2:2021+AC:2022, UN38.3, MSDS
